Name: SHACMAN Side Dump Truck H3000 4X2 240hp Yellow Tipper Truck
Brand: SHAAN XI HAN OCEAN CO . , LTD
SKU: H3000
Price: Negotiable USD
Availability: InStock

Home > products > Light Dump Truck >

SHACMAN Side Dump Truck H3000 4X2 240hp Yellow Tipper Truck

SHACMAN Side Dump Truck

Side Dump Truck H3000 4X2

4X2 240hp Yellow Tipper Truck

Place of Origin:

Shaanxi, Xian

Brand Name:

SHACMAN

Certification:

ISO 9001/CCC

Model Number:

H3000

Request A Quote

Product Details

Model:

SX3185MK381

Engine:

WP7.240E32

Axle:

4.8T/11.5 Single Stage Axle， Axle Speed-5.286

Transmission:

8JS105A+QD40J

Tire:

10.00R20

Chassis:

870×270(7+4)

Suspension:

Front /rear Multi-layer Plate Spring

Air Inlet:

Ordinary Air Filter

Color:

Neon Red/Green Mountain/Aurora White

Wheel Base:

3800mm

Cabin:

Medium-length Flat Roof

Highlight:

SHACMAN Side Dump Truck

Side Dump Truck H3000 4X2

4X2 240hp Yellow Tipper Truck

Payment & Shipping Terms

Minimum Order Quantity

1UNIT

Price

Negotiation

Packaging Details

Nude pack, with wax before shipment.

Delivery Time

45 working days

Payment Terms

T/T, L/C

Supply Ability

5000 units/month

RELATED PRODUCTS

Contact Now

Product Description

SHACMAN Light Dump Truck H3000 4X2 240hp Yellow Tipper

Detailed Product Description

Model: SX3185MK381

Drive type: 4x2

Engine Brand: WEICHAI

Engine Model: WP7.240E32

Engine Power/(kw/HP): 176kw / 240Hp

Gear box Brand: FAST

Gear box Model: 8JS105A+QD40J

Light Dump Truck Parameters

Model	SX3185MK381
Drive type	4x2
Dimensions	Wheelbase/(mm)	3800
Performance	Maximum speed/(km/h)	45～60/75
Performance	Ground clearance	>314
Engine	Brand	WEICHAI
	Model	WP7.240E32
	Power/(kw/HP)	176kw / 240Hp
	Maximum torque / (N.M)/rpm	1050 N·M
	Displacement/(L)	7.14 L
	Emission standard	Euro II
Gear box	Brand	FAST
Gear box	Model	8JS105A+QD40J
Clutch	Type	φ430 Diaphragm spring clutch
Cooling	Type	Domestic heat sink
Air inlet	Type	Ordinary air filter
Brakes	Type	Drum brake
	Service brake	Double circuit air brake
	Park brake	Rear wheel spring brake
	Auxiliary brake	WEVB engine exhaust brake
Steering	Type	ZF8098 technology, circulating ball steering machine
Chassis	Type	Parallel trapezoidal frame with variable section
Chassis	Dimensions/(mm)	870×270(7+4)
Suspension	Front	Front /rear Multi-layer plate spring
Suspension	Rear	Front /rear Multi-layer plate spring
Axles	Brand	HANDE
	Front axle	4.8T
	Rear axle	11.5 Single Stage Axle, Axle Speed-5.286
Tires	Type	10.00R20
Fuel tank	Tank capacity/(L)	300L Aluminum tank
Electrics	Type	24V
Electrics	Battery	165Ah Maintenance-free battery
Cab	Type	SHACMAN H3000 Medium-length flat roof
Cab	Equipment	Hydraulic main seat, four-point hydraulic suspension cab, lever mirrors, electronically controlled automatic climate control, electric window crank, manual flip, telescopic axle manoeuvre, common air filter, tank protection grille, metal bumper, two-stage pedals, 165Ah maintenance-free battery, SHACMAN logo, full English logo

Advantages

The H3000 truck is designed to carry heavy loads with ease.It has a spacious dump lathe, high load capacity, effectively transport building materials and other goods.
H3000 trucks provide 4 x2 drive configuration, combined with the ability to load and mobility, make it suitable for all kinds of road conditions.

Detailed Image

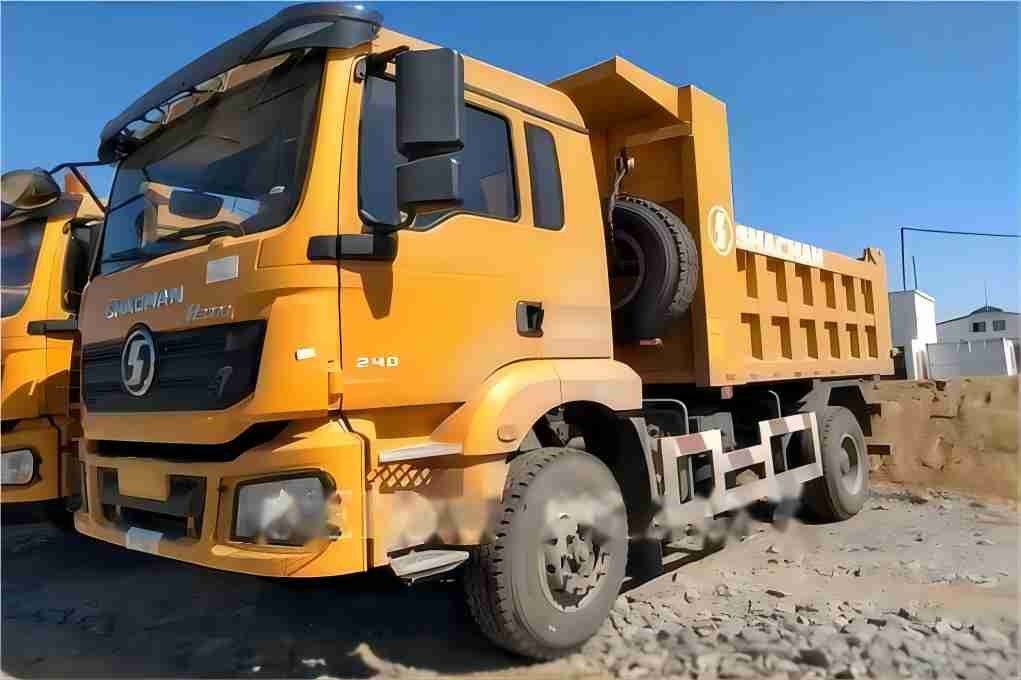

SHACMAN Side Dump Truck H3000 4X2 240hp Yellow Tipper Truck 0

FAQ
1. Who are we?
We are based in Shaanxi, China, start from 2015, sell to Africa (70.00%), Southeast Asia (10.00%), Central America (10.00%), South America (4.00%), Mid East (2.00%), Eastern Asia (2.00%), South Asia (2.00%). There are total about 11-50 people in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.

3. What can you buy from us?
Dump truck, track truck, lorry truck, Van truck, Mixer truck.

4. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, CIP, DDU；
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A
Language Spoken: English, French
