SHACMAN 3 Axles Tipper Truck F3000 6x4 380Hp EuroII Orange
Detailed Product Description
Model:SX3255DT384
Drive type:6x4
Weight: Gross Vehicle Weight≤50
Engine Brand: WEICHAI
Engine Model:WP10.380E22
Engine Power/(kw/HP): 279kw / 380Hp
Gear box Brand: FAST
Gear box Model: 10JSD180+QH50
Dumper Truck Parameters
| Model |
SX3255DR384 |
| Drive type |
6x4 |
| Weight |
Gross Vehicle Weight |
≤50 |
| Dimensions |
Wheelbase/(mm) |
3775+1400 |
| Performance |
Maximum speed/(km/h) |
40～55/75 |
| Ground clearance |
>314 |
| Engine |
Brand |
WEICHAI |
| Model |
WP10.380E22 |
| Power/(kw/HP) |
279kw / 380Hp |
| Maximum torque / (N.M)/rpm |
1600 N·M |
| Displacement/(L) |
9.726 L |
| Emission standard |
Euro II |
| Gear box |
Brand |
FAST |
| Model |
10JSD180+QH50 |
| Clutch |
Type |
φ430 Diaphragm spring clutch |
| Cooling |
Type |
Domestic heat sink |
| Air inlet |
Type |
Ordinary air filter |
| Brakes |
Type |
Drum brake |
| Service brake |
Double circuit air brake |
| Park brake |
Rear wheel spring brake |
| Auxiliary brake |
WEVB engine exhaust brake |
| Steering |
Type |
ZF8098 technology, circulating ball steering machine |
| Chassis |
Type |
Parallel trapezoidal frame with variable section |
| Dimensions/(mm) |
850×300(8+7) |
| Suspension |
Front |
Multi-layered leaf springs with 4 Main springs+4 U Bolts |
| Rear |
Multi-layered leaf springs with 4 Main springs+4 U Bolts |
| Axles |
Brand |
HANDE |
| Front axle |
9.5T front axle MAN technology |
| Rear axle |
16T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 5.92 |
| Tires |
Type |
12.00R20 |
| Fuel tank |
Tank capacity/(L) |
300L Aluminum tank |
| Electrics |
Type |
24V |
| Battery |
165Ah Maintenance-free battery |
| Cab |
Type |
SHACMAN F3000 Medium-length flat cab |
| Equipment |
Hydraulic main seat, four-point hydraulic suspension cab, ordinary rearview mirror, electronically controlled automatic constant temperature air conditioner, electric window shaker, 165Ah maintenance-free Battery, SHACMAN logo, full English logo. |

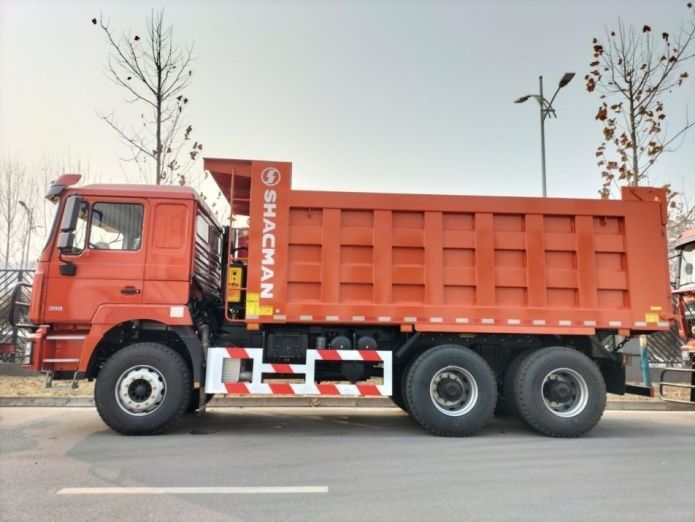

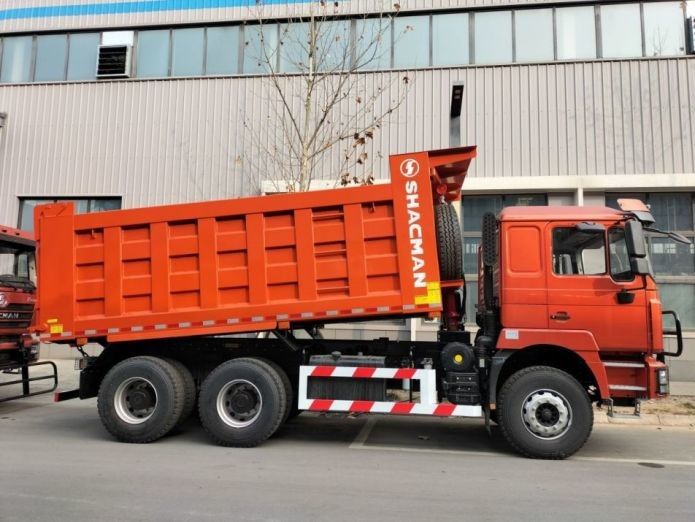

SHACMAN Dump Truck Pictures
About SHACMAN Trucks
We have built localized factories in 15 countries along the "Belt and Road", including Algeria, Kenya, and Nigeria. We have 42 overseas marketing regions, more than 190 primary dealers, 38 parts centers, 97 overseas parts stores, and 240 overseas service outlets, and our products are sold in more than 130 countries and regions worldwide.
Headquartered in Xi'an, Shaanxi Province, the company was formerly known as Shaanxi Automobile Manufacturing Plant, which was established in 1968. It is the main R&D and production base of heavy military vehicles in China, a large-scale full-series commercial vehicle manufacturer, and the first batch of the export base of complete vehicles and parts in China, with 25,400 employees and total assets of 73.1 billion.
FAQ
1. Who are we?
We are based in Shaanxi, China, start in 2015, sell to Africa (70.00%), Southeast Asia (10.00%), Central America (10.00%), South America (4.00%), Mid East (2.00%), Eastern Asia (2.00%), South Asia (2.00%). There are a total of about 11-50 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.
3. What can you buy from us?
Dump truck, track truck, lorry truck, Van truck, Mixer truck,
4. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, DAF, EXW, CIP, DDU；
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A
Language Spoken: English, French, Russian, Spanish
